Bone Injection Gun (B.I.G) - 18g Paediatric Version

Bone Injection Gun (B.I.G) - 18g Paediatric Version. The World's First User-friendly Automatic, Spring-loaded Intraosseous (IO) Device.

The Bone Injection Gun (B.I.G) is instant answer to unsuccessful intravenous access during emergencies. By offering instant intravascular access, the delivery of fluids and medication flows at higher rates than IV infusion. With the help of the Bone Injection Gun, IO infusion can be established in less than 60 seconds with an easy "position and press" mechanism that dramatically increases the medic or trained first responders ability to save lives.

The Bone Injection Gun (B.I.G) establishes IO infusion within seconds, ideal for high-pressure or extreme emergency situations, or when previous intravenous access has been unsuccessful. The Bone Injection Gun is ideal for the rapid infusion of liquids or drugs and suitable for blood transfusion.

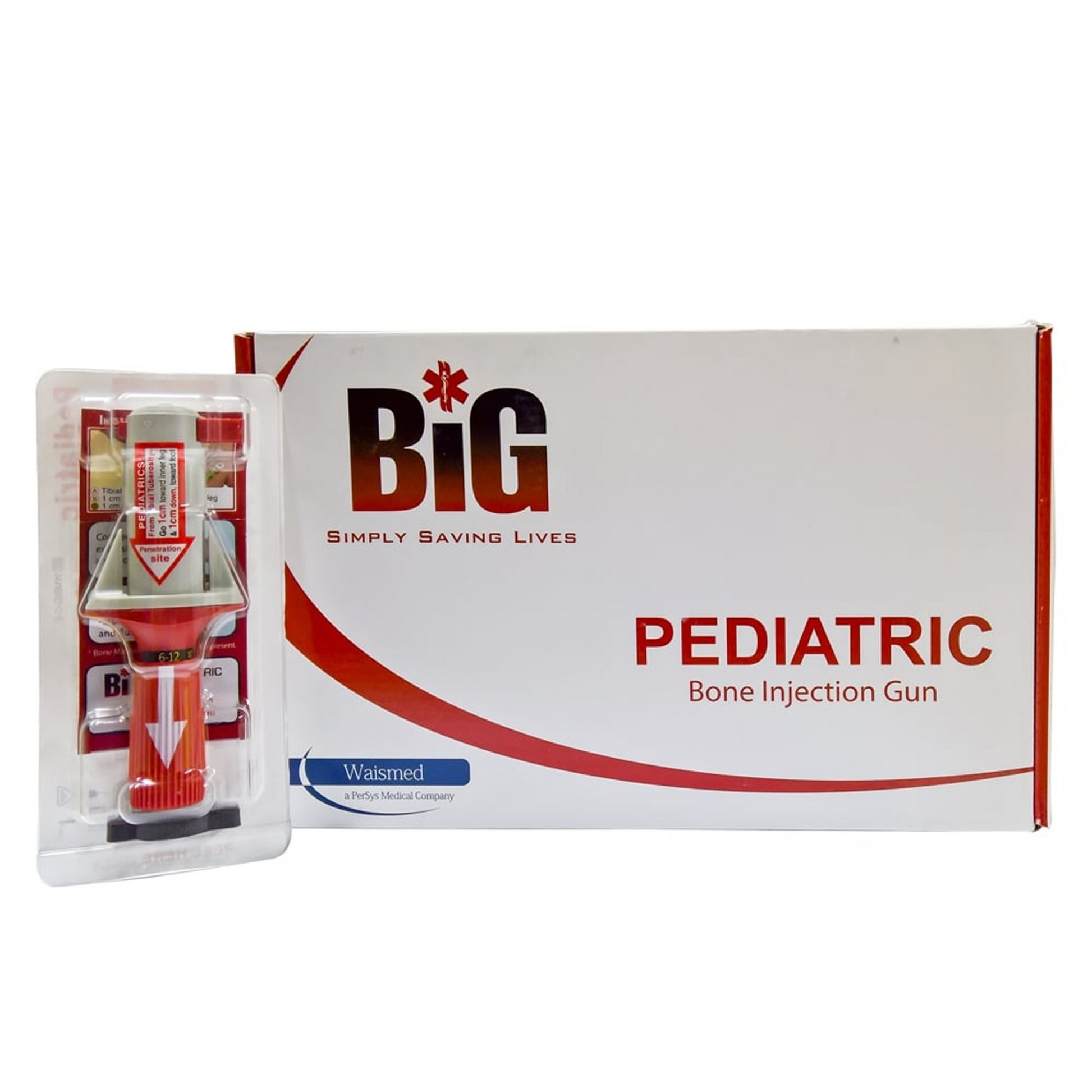

Supplied in a compact, easy to open package, The Bone Injection Gun (B.I.G) requires no assembly or external power source to work. Simply use and dispose.

Safe, reliable and user-friendly to ensure ease of operation in the most extreme conditions. The Bone Injection Gun is a "grab 'n' go" device that is ready for immediate use, with zero maintenance required.

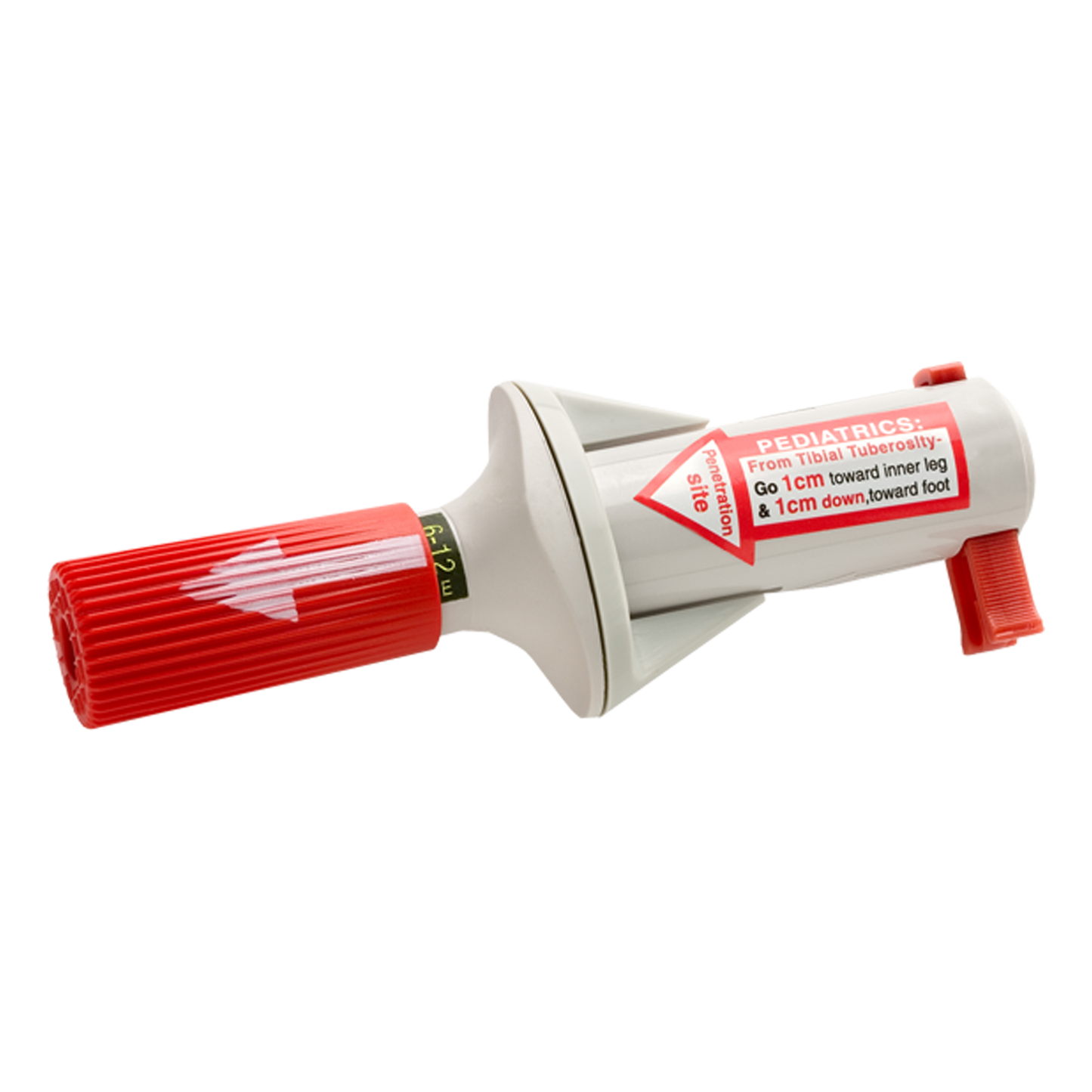

The Paediatric Bone Injection Gun (B.I.G)

• 18g (gauge) needle
• For paediatric causalities aged 0*-12 years (*term new borns)
• Adjustable barrel to determine needle penetration depth vs casualties age
• Depth range: 05.cm to 1.5cm
• For use on proximal tibia only
• Intraosseous access in less than 60 seconds

Paediatric Marker Depths For Needle Penetration:

• 0-3 years: 0.5 to 1cm
• 3-6 years: 1 to 1.5cm
• 6-12 years: 1.5cm

Note: 0 years = term new borns only.

Also available is a Adult Bone Injection Gun with 15g needle.

Ready For Use. Anytime. Anyplace. Anywhere.

The Bone Injection Gun (B.I.G) is compact and fits any pocket or responder bag. Specifically designed for use in all clinical settings, ranging from Hospitals, Pre-Hospital Care, Ambulances, EMS, Search & Rescue Teams to the Military Battlefields and War Zones. Extra safe design with no direct contact with patient's blood and provides relatively painless penetration to the casualty.

The Bone Injection Gun (B.I.G) can be used by:

• Doctors
• Nurses
• Paramedics
• Trained First Responders
• Trained Caregivers

 Please note: This device is intended for suitably trained healthcare professionals only.

Specifications:

• Paediatric 18g (gauge) needle
• Barrel with directional safety marks
• Cannula length: 43.4mm
• Safety "wings" to help ensure safer handling
• Adjustable barrel to determine needle penetration depth vs casualties age
• Integrated safety latch
• For use on proximal tibia (paediatric casualties only)
• FDA cleared and CE marked
• 5 year shelf life
• Pocket sized: 6.5 x 3in. (16.5 x 7.6cm)
• Single use device
