The Signal Fixed Height ECG Ipad Trolley

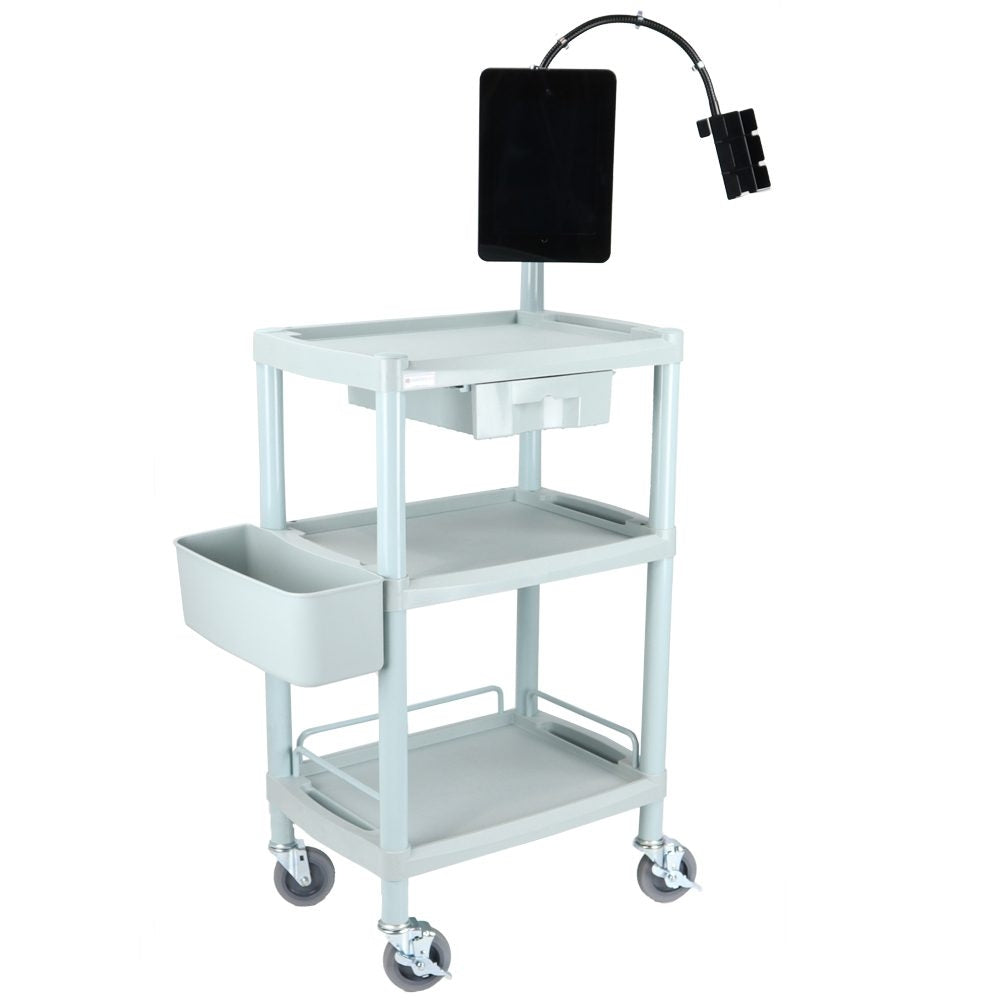

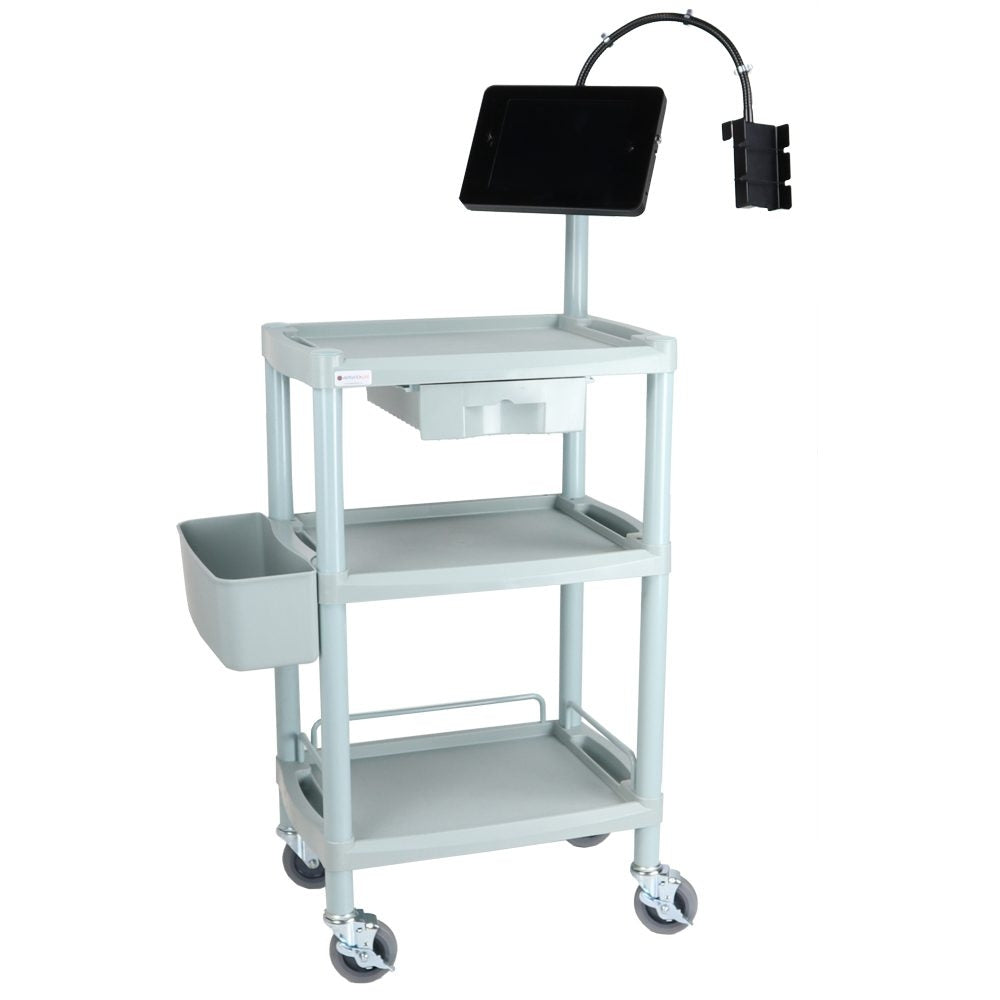

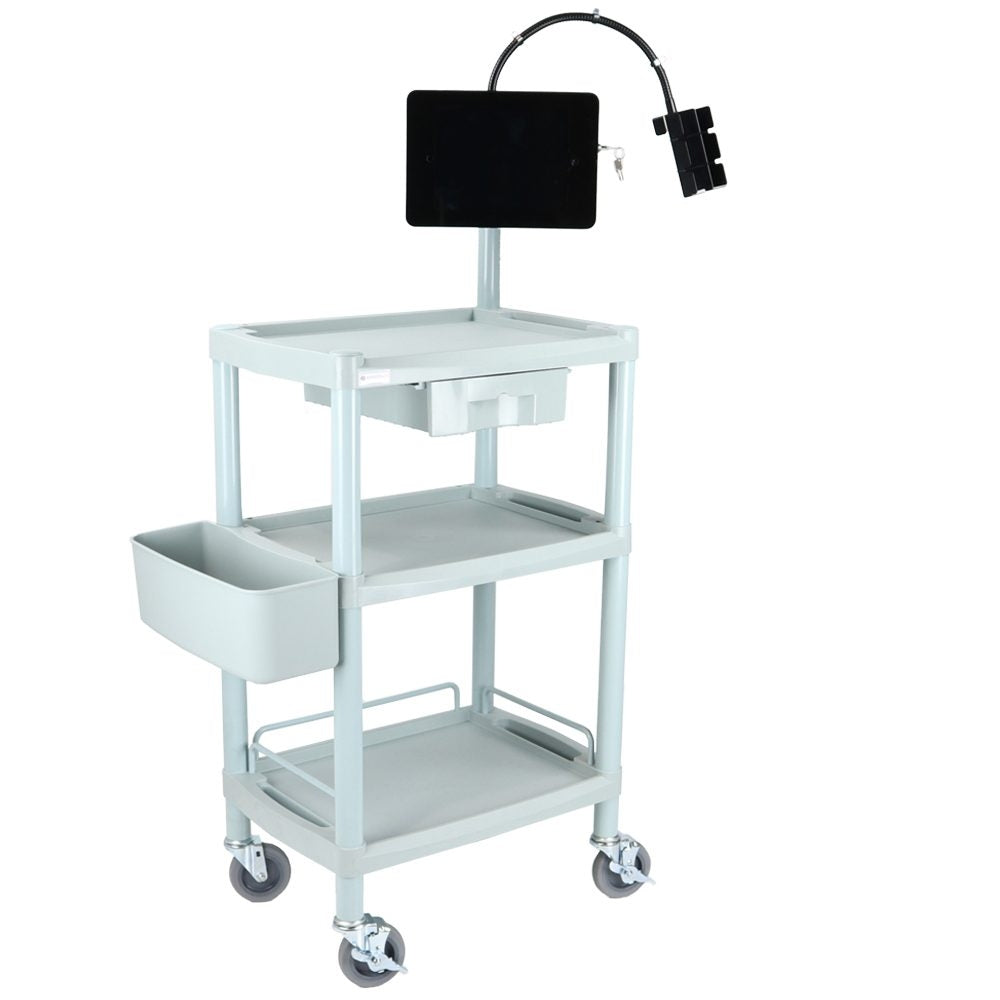

The Signal Fixed Height ECG Ipad trolley has been designed to integrate with most manufacturers of ECG machines and integrate an Ipad in a locking secure holder. It features a comfortable working height, an adjustable arm for the cables, a “universal” tray to hold the wired ECG electrodes. It also ingrates a secured IPAD mount in a locking holder which is adjustable for height and angle.
The ECG Trolley comes complete with an easy clean basket for the electrodes and paper and a pullout drawer for accessories. It is fitted with 2 x locking castors to prevent rolling during the procedure.
The trolley is designed to be easy to clean and cost effective. It is simple to assemble taking only a few moments and no tools are required.
For export enquiries the trolley flat packs onto a light weight compact box.
Key Dimensions
- The top tray onto which the ECG would be positioned has a working height of 930mm from the floor.
- The tray has an internal useable dimensions of 440mm wide x 340mm deep. It comes with a lip to prevent the ECG from being accidentally knocked off.
- The lead arm is fixed for the first 300mm and then flexible for 460mm giving ample reach over the patient.
- The “universal” tray holds the electrode unit and measures 85mm wide and 130mm long with 2 x retaining bands. The flexible portion of the arms has 3 cable clips.
- The Ipad holder is for an IPAD 3 and 4 (other tablets, Laptops, IPADs or IPHONE models available in request, please contact us)
Typically compatible ECGs:
- Welch Allyn CP150
- Welch Allyn ELI150C
- SECA CT8000i-2
- SECA CT8000p-2
