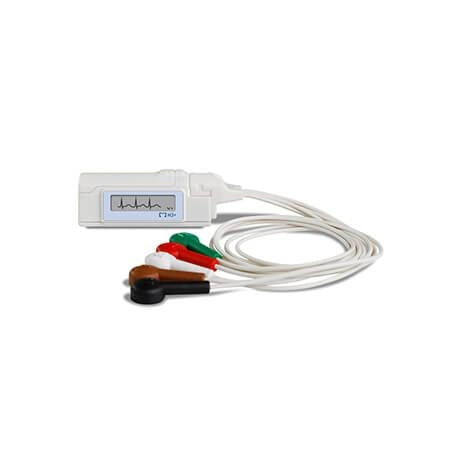

The H3+ Digital Holter Recorder provides 3-channel recording with standard pacemaker spike detection, and it supports continuous recording for up to two days with just one AAA battery.
Product Features:
- Small and Lightweight — The H3+™ Digital Holter recorder weighs just 1 oz. (28 g)—so small, patients will hardly notice it’s there.
- 3-Channel Recording — The H3+ recorder provides 3-channel recording with standard pacemaker spike detection.
- Convenient Waveform Display — It features a full graphic display to preview ECG waveforms during patient hookup.
- Impressive 48-Hour Continuous Recording — With just one AAA battery, the H3+ recorder supports continuous recording for up to 2 days.
- USB Data Transfer — Recordings are downloaded via USB cable to the HScribe™ 5 Holter analysis system. Recordings can also be uploaded from a computer with Internet access to a scanning center equipped with the Web Upload solution. Holter hookup can be performed in any convenient location.
- Best-in-class VERITAS® Analysis — The H3+ recorder is compatible with the HScribe 5 Holter analysis system featuring best-in-class VERITAS signal processing and analysis capabilities.
- Comprehensive Review — Recordings are imported and rapidly analyzed at the HScribe 5 Holter analysis system. The HScribe 5 system provides sophisticated review and powerful editing tools to ensure accurate, quality reporting.
Specification:
- Instrument Type - Digital Holter recorder
- Input Channels - Simultaneous acquisition of 3 channels
- Standard Leads Acquired - Modified I, II, III, aVR, aVL, aVF and V
- Input Impedance - Input Dynamic Range
- Electrode Offset Tolerance Frequency Response - Meets or exceeds the requirements of IEC 60601-2-47
- Digital Sampling Rate - 180 s/sec/channel used for standard recording and storage
- Special Functions - Pacemaker detection; ECG display during hookup
- A/D Conversion - 12 bits
- Storage - Internal, non-volatile memory; up to 48 hours
- Device Classification - Type CF defibrillator-proof applied parts, internally powered
- Weight - 1 ounce (28 grams) without battery
- Dimensions - 2.5 x 1.0 x .75” (64 x 25 x 19 mm)
- Battery - 1 AAA alkaline required
