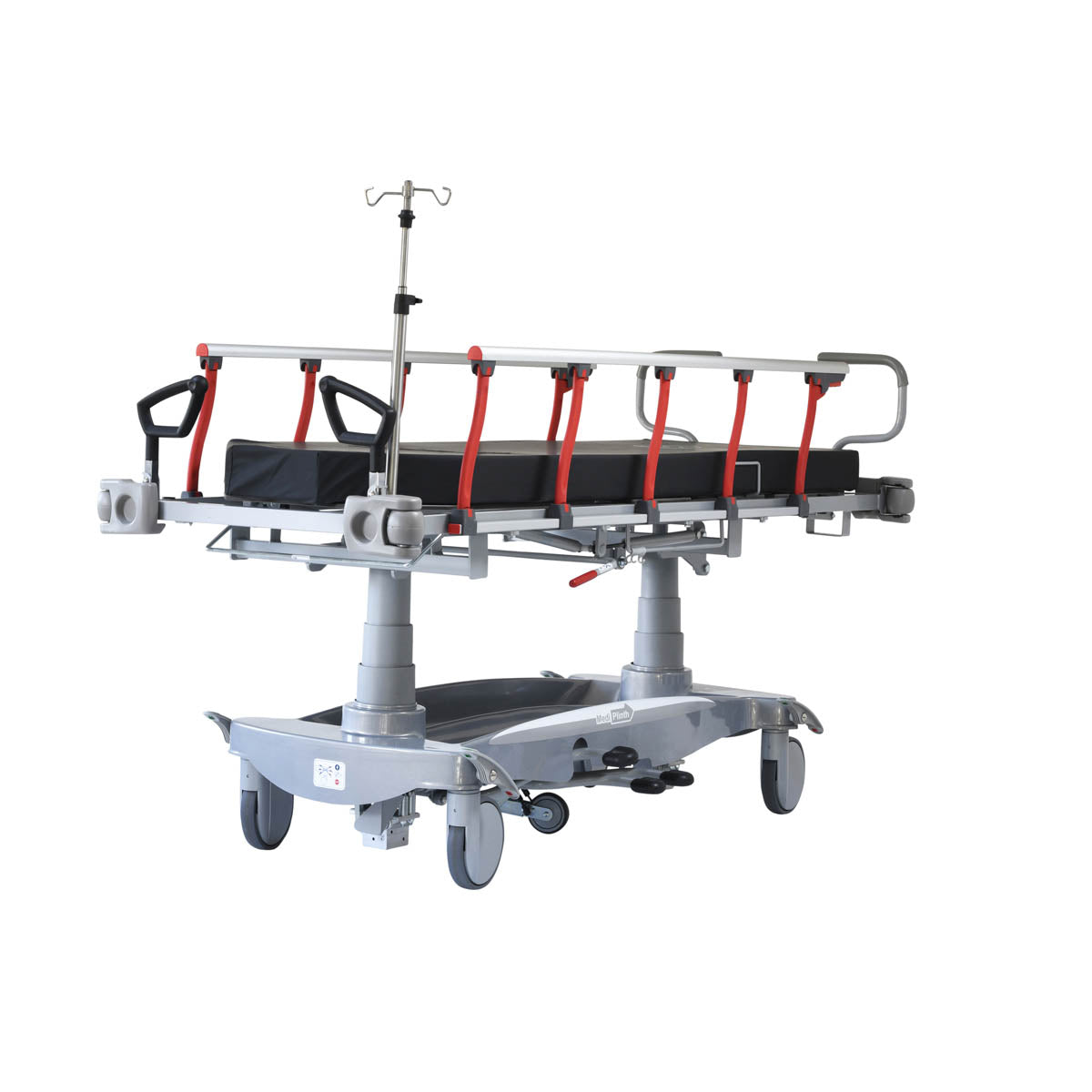

Motion Transport Stretcher Trolleys

Structure
Epoxy coated steel tube frame.
Two or four section platform made of damp-proof and impact-resistant HPL material, resistant to humidity and shock.
Motion Plus (4 section) hydraulically operated.

Comfort
High-density polyurethane construction, ergonomically designed for optimum comfort.
Hydraulically operated backrest and height adjustment from 66–97.5 cm.
Hydraulic Trendelenburg and reverse Trendelenburg positions (+/-18º).
Foot pedals at either side of the stretcher control height, Trendelenburg and reverse Trendelenburg adjustment.

Easy Cleaning
Mattress upholstered with antimicrobial, anti-static covering. Easy to clean and maintain.
Smooth surfaces and removable panels allow easy, fast cleaning and disinfection.

Ease Of Handling
Ø 200 mm castors with single-point braking system, controlled by foot pedals on each corner of the stretcher.
The fifth wheel improves manoeuvrability and control; allows 360° rotation on its axis.
Ergonomically designed folding handles for easier greater control when manoeuvring.

Safety
X-ray translucent platform 10cm height mattress complies with BS 7176 (Medium Hazard).
Integrated siderails help secure patient: their lowest position does not exceed mattress height, making transfers simpler and safer.
Buffers located on each corner of the stretcher.
ABS base cover protects the stretcher mechanism and facilitates easy cleaning.
Conforms to Regulation (EU) 2017/745.

Product Specifications:

• Overall dimensions (2 sect.) - 218 x 82cm
• Back section dimensions (2 sect.) - 62 x 71cm (2 sect.)
• Leg section dimensions (2 sect.) - 66 x 116cm
• Overall dimensions (4 sect.) - 210 x 82cm
• Back section dimensions (4 sect.) - 62 x 71cm (4 sect.)
• Leg section dimensions (4 sect.) - 62 x 34cm
• Foot section dimensions (4 sect.) - 62 x 47
• Backrest tilting - 90°
• Legrest tilting (4 sect.) - 35°
• Trendelenburg / Reverse - ±18º
• Weight w/o accessories - 100kg
• Safe working load - 300kg
