SECA Medical Body Composition Analyser

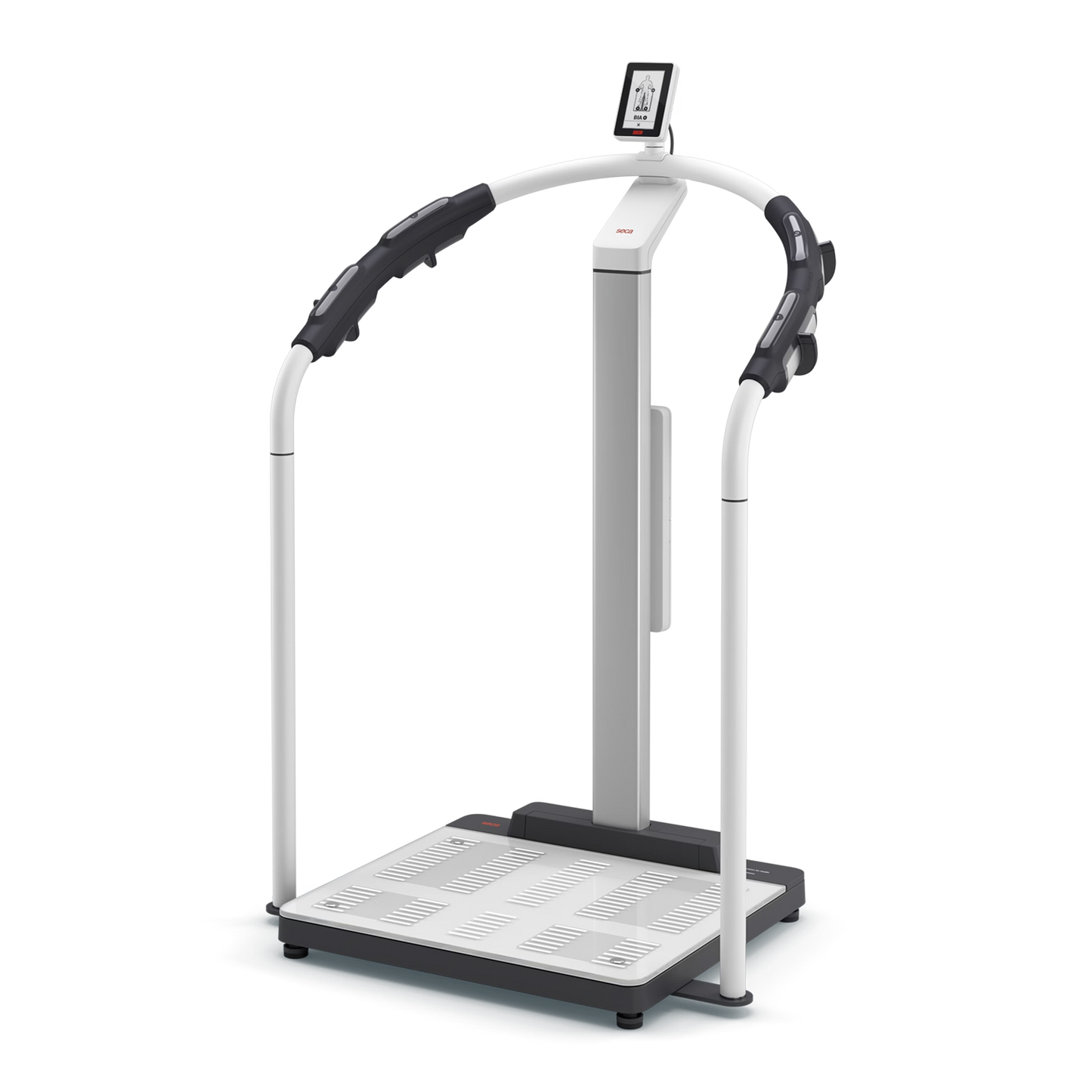

Introducing the seca mBCA Pro

• Unique accuracy through whole body MRI validation (skeletal muscle mass) and 4C model (fat mass)

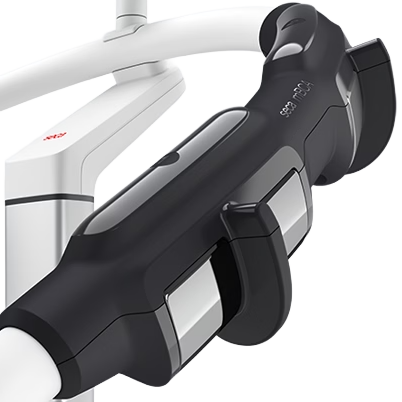

• Handrail with fixed handle positions: Measurements are reproducible and reliable
• Validation studies are bundled and transparently published in the European Journal of Clinical Nutrition 2013/2017, among others
• Comprehensive, personalized normal ranges based on over 3,000 multiethnic subjects

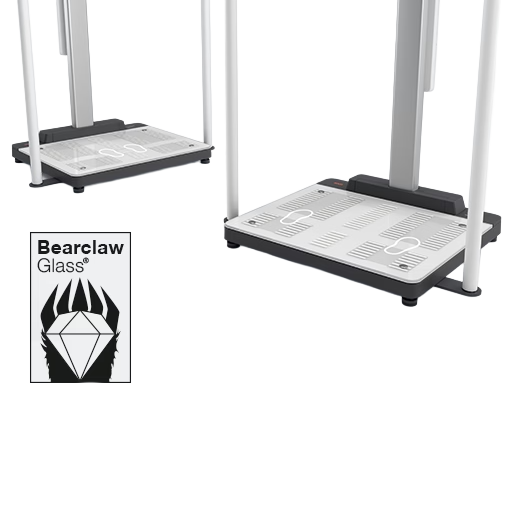

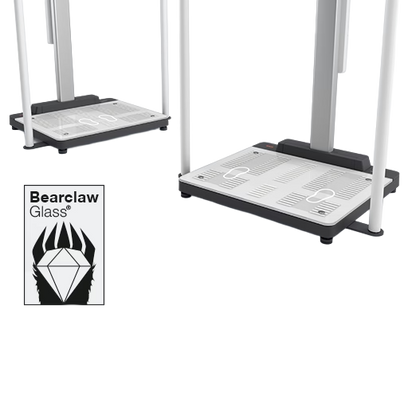

• Foot-mounted LEDs embedded in the platform show the various positions and give patients a sense of safety and orientation
• Cloud-based software with easy understandable graphics guarantees a complete picture of the body composition
• Specially developed formulas for children over 5 years and 1.30 m as well as people over 65 years and patients with obesity

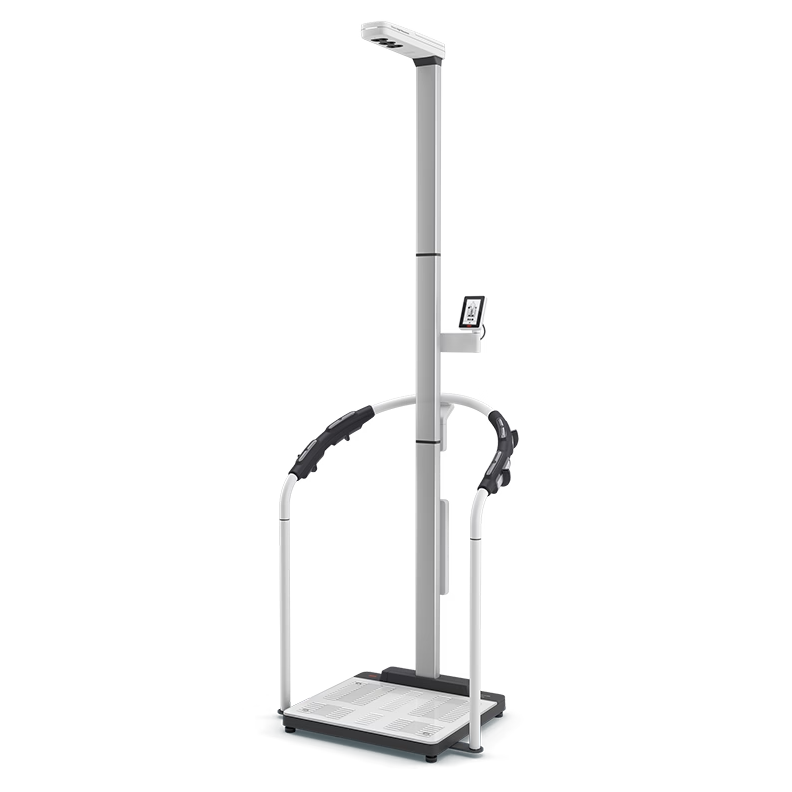

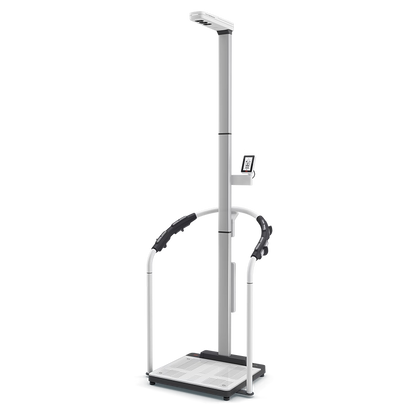

• Optional: Precise and contactless height measurement in seconds using the latest ultrasonic technology
• EMR-validated: transmit measured data directly to an electronic medical record system or printer

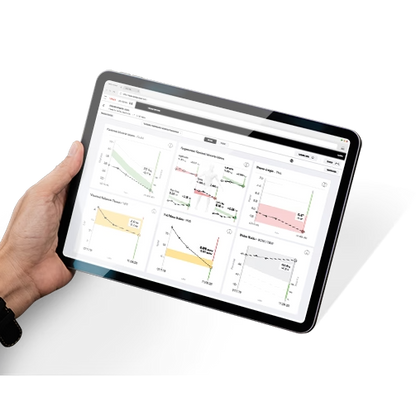

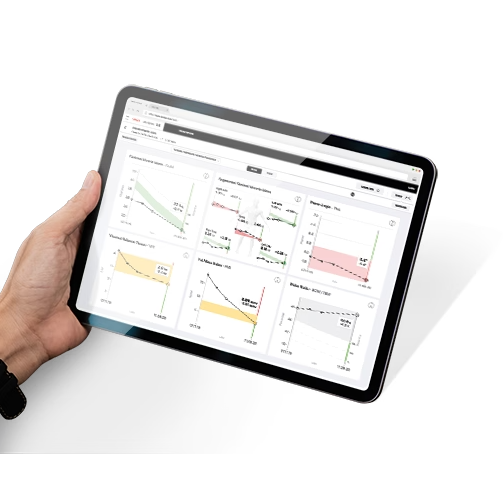

A cloud-based bioimpedance analysis that does the work for you:

Thanks to the cloud-based software, all IT administrative tasks such as storing, managing and backing up data are handled for you, leaving you with more time for your patients. Sensitive patient data is transmitted and saved in an encrypted form and protected from third-party access. The parameter templates can be customised and tailored to specific questions and thematic priorities.

Developed in conjunction with medical users

Years of experience from research collaborations and working together with medical specialists guarantee the highest precision and accuracy exemplified in the seca mBCA Pro. Validated by medical studies, the analyser provides modern, cloud-based software, and optional innovative length measurement with ultrasound technology. With its improved graphic analysis, it draws an accurate and comprehensive picture of the body's composition in seconds and makes bioimpedance analysis an even more valuable support for therapy and diagnosis.

Every body component validated to the gold standard

The seca mBCA is validated as the only BIA solution for all components with the most  accurate reference method (gold standard). This includes the complex comparison with a whole-body MRI for muscle mass and, with the 4C model, for fat mass or fat-free mass. In order to give the user absolute certainty about the reliability of the measurement results, our validation studies are published transparently and in a combined form in peer-reviewed journals.

Specifications:

• Approval class: III
• Capacity: 300 kg
• Graduation: 50 g < 150 kg > 100 g

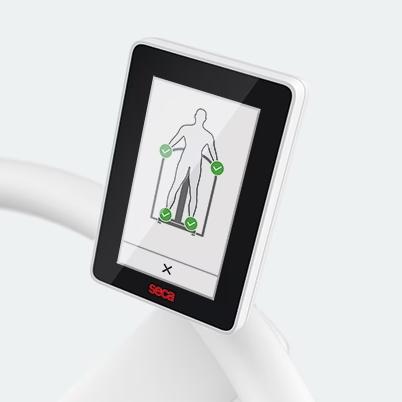

• Display type: 4.3" tiltable and rotatable touchscreen
• Connectivity: Wi-Fi, Ethernet
• Ports: USB for barcode scanner
• Measurement method: 8-point Bioelectrical Impedance Analysis
• Measurement current: 100 μA
• Measurement duration: 24 seconds

Height Measure:

• Measuring range: 100 ‒ 220 cm
• Graduation 1 mm
• Functions Automatic calibration
