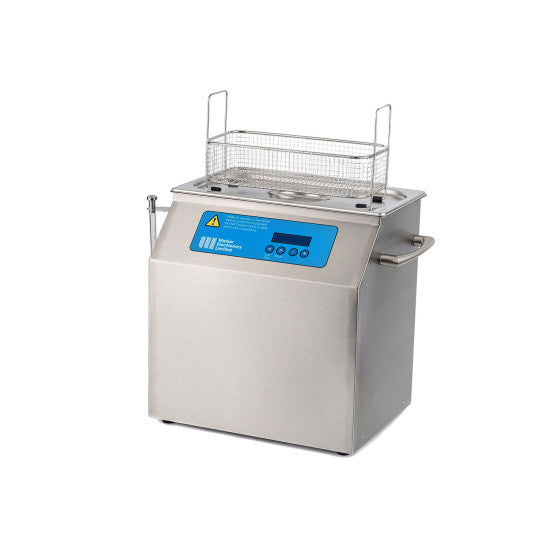

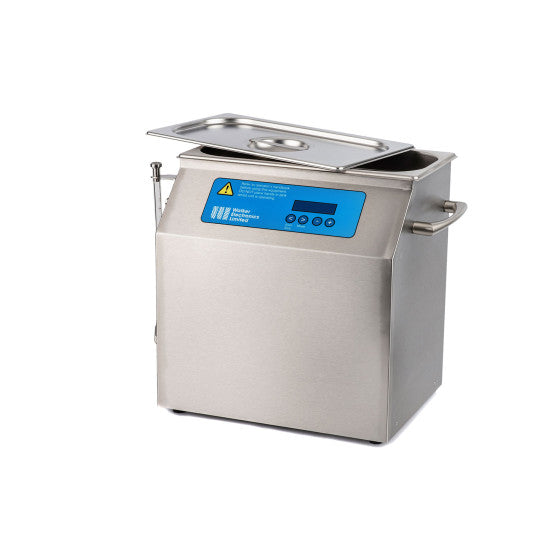

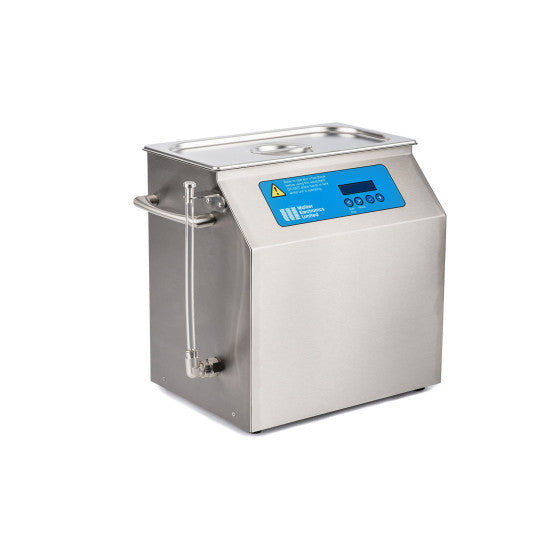

T105 Ultrasonic Cleaner - HTM01-05 Compliant - 4.5L

The T105 Ultrasonic Cleaner from Walker Electronics Limited is a HTM01-05 compliant, 4.5 litre easy to use and reliable ultrasonic cleaner specifically designed for cleaning a wide range of instruments, ideally suited for medium to large dental practices.

Walker Electronics Ltd have been manufacturing and supplying ultrasonic cleaners for over 60 years and are a market leader in ultrasonic cleaning technology. All Walker Electronics Ltd Ultrasonic Cleaners are manufactured in the UK in Yorkshire by Walkers Electronics Ltd and all repairs and validations are also carried out in the UK by their own skilled technicians.

Features

• Stainless Steel tank, lid and case, electropolished stainless steel basket.
• No fluid and low fluid sensing
• Fast 3 to 6 minute cycles
• Adjustable maximum temperature setting to prevent coagulation of proteins – Factory set at 45oC
• Interlocking lid – pauses the unit operation when the lid is lifted
• Validation of cycle with user, serial number, date, time, unique cycle number, fluid temperature, frequency and power consumption
• Automatic 90 second degas cycle after cleaning fluid has been changed
• Draining facility
• PIC chip technology – reprogrammed on annual service
• Waterproof USB socket for transfer of information to a memory stick (supplied with the unit)
• Complies with BSEN 61010-1
• Enhanced frequency control.  Controls the units power and frequency even better than before resulting in improved cleaning.

Specifications

• Time Control: Digital - 30 seconds to 15 minutes
• Rated Voltage: 220-240 Volts AC, 50-60 Hz
• Tank Dimensions: Length 300mm x Width 145mm x Depth 150mm
• External Dimensions: Length 355mm x Width 238mm x Depth 325mm
• Working Capacity: 4.5 Litres
• Maximum Capacity: 5.5 Litres
• Net Weight (excluding accessories): 5.75kg
• Gross Boxed Weight (including accessories): 8.25kg
• Typical Generator Peak Output: 750 watts
• Typical Power Consumption: 375 watts
• Typical Ultrasonic Power Per Litre: 83 watts
• Operating Frequency: 48 kHz +/- 2 kHz
• Case Construction: EN10088 Stainless Steel
• Tank Construction: BS304 Stainless Steel
• Chassis Construction: BS1449 Aluminium
• Lid Construction: BS304 Stainless Steel
• Basket: Electropolished BS304 Stainless Steel
• Basket Dimensions: Length 240mm x Width 170mm x Depth 15mm
• Warranty: 3 Year
• Transducer Warranty: 5 Years

Contents

The T105 unit includes:

• Basket
• Lid
• UK Mains Lead
• USB Drive
• Sample Cleaning Fluid
• Handbook
