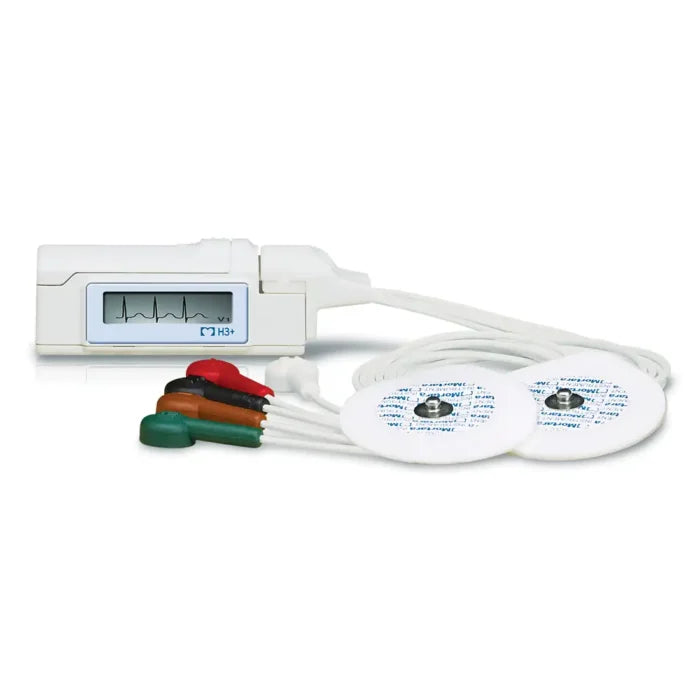

Welch Allyn H3+ 7-Day Digital Holter ECG Machine

Welch Allyn H3+ 7-Day Digital Holter ECG Machine

The H3+ 7-day Digital Holter ECG Machine from Welch Allyn provides high-quality 3-channel Holter recordings with a signal preview screen and full graphic display for easy previewing of ECG waveforms. The device weighs only 28 grams and is small and lightweight, making it comfortable for patients to wear during long periods.

The H3+ also provides 3-channel recording with standard pacemaker spike detection, and supports continuous recording for up to two days with just one AAA battery.

Recordings can be quickly and easily transferred to your PC via USB cable. Recordings are imported and rapidly analysed at the Holter Analysis System, which provides sophisticated review and powerful editing tools to ensure accurate, quality reporting.

Key Features:

• Records 3 channels of continuous ECG data for up to 7 days
• Compact, light (weighs just 28g) and easy to use

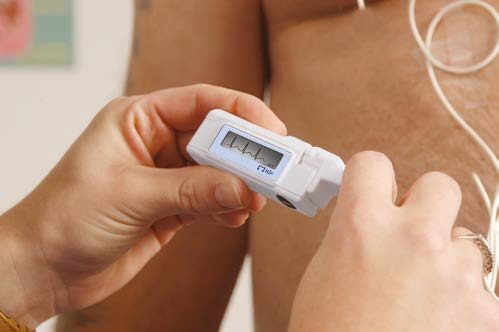

• Features a full graphic display to preview ECG waveforms during patient setup

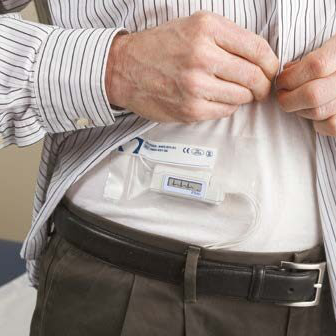

• Discreet recorder allows the patient to perform routine activities that may lead to improved presentation of reported symptoms
• Just one AAA battery required
• Event button allows patients to mark specific events that occur during the test
• Recordings are imported and rapidly analysed with the Express Holter software (Express software available separately)


What's in the box:

• H3+ 7-day Holter recorder IEC 5-wire, 38cm
• Leadform patient cable (3-channel)
• Carry case
• Hookup kit

• User manual and SFIC

Specifications:

• Input channels: Simultaneous acquisition of 3 channels
• Standard leads required: Modified I, II, III, aVR, aVL, aVF, and V
• Meets or exceeds requirements: IEC 60601-2-47
• Frequency response: Meets or exceeds the requirements of IEC 60601-2-47
• Digital sampling rate: 180 s/sec/channel used for standard recording and storage
• Special functions: pacemaker detection; ECG display during hook-up
• A/D conversion: 12 bits
• Storage: internal, non-volatile memory; up to 48 hours
• Device classification: type CF defibrillator-proof applied parts, internally powered
• Weight: 28g
• Dimensions: 64 x 25 x 19 mm
• Battery: 1x AAA alkaline required for continous recording up to 48 hours
