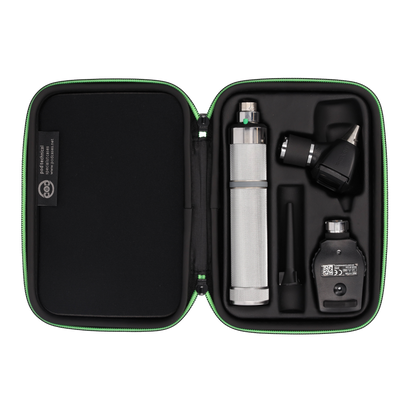

Welch Allyn Standard Battery Vet Set & Case

Welch Allyn C-Cell Battery Vet Diagnostic Set & Case. Wide-angle Viewing Lens for Long Lasting Performance.

Diagnostic otoscope set with fibre optics that project a cool light to the distal tip with no reflections or obstructions for superior views of the tympanic membrane. The wide-angle viewing lens allows for instrumentation under magnification, with a sealed system for pneumatic otoscopy to help improve diagnosis.

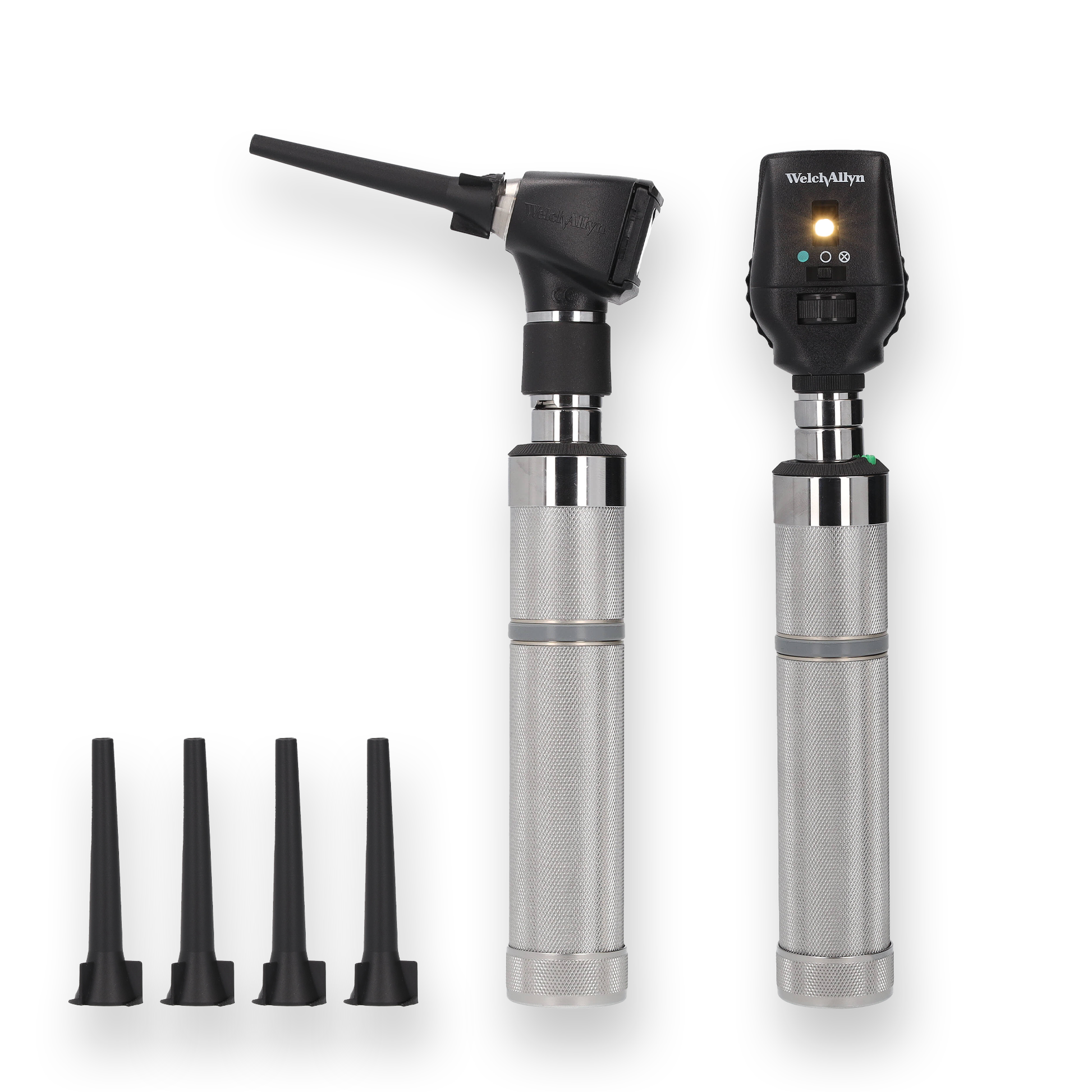

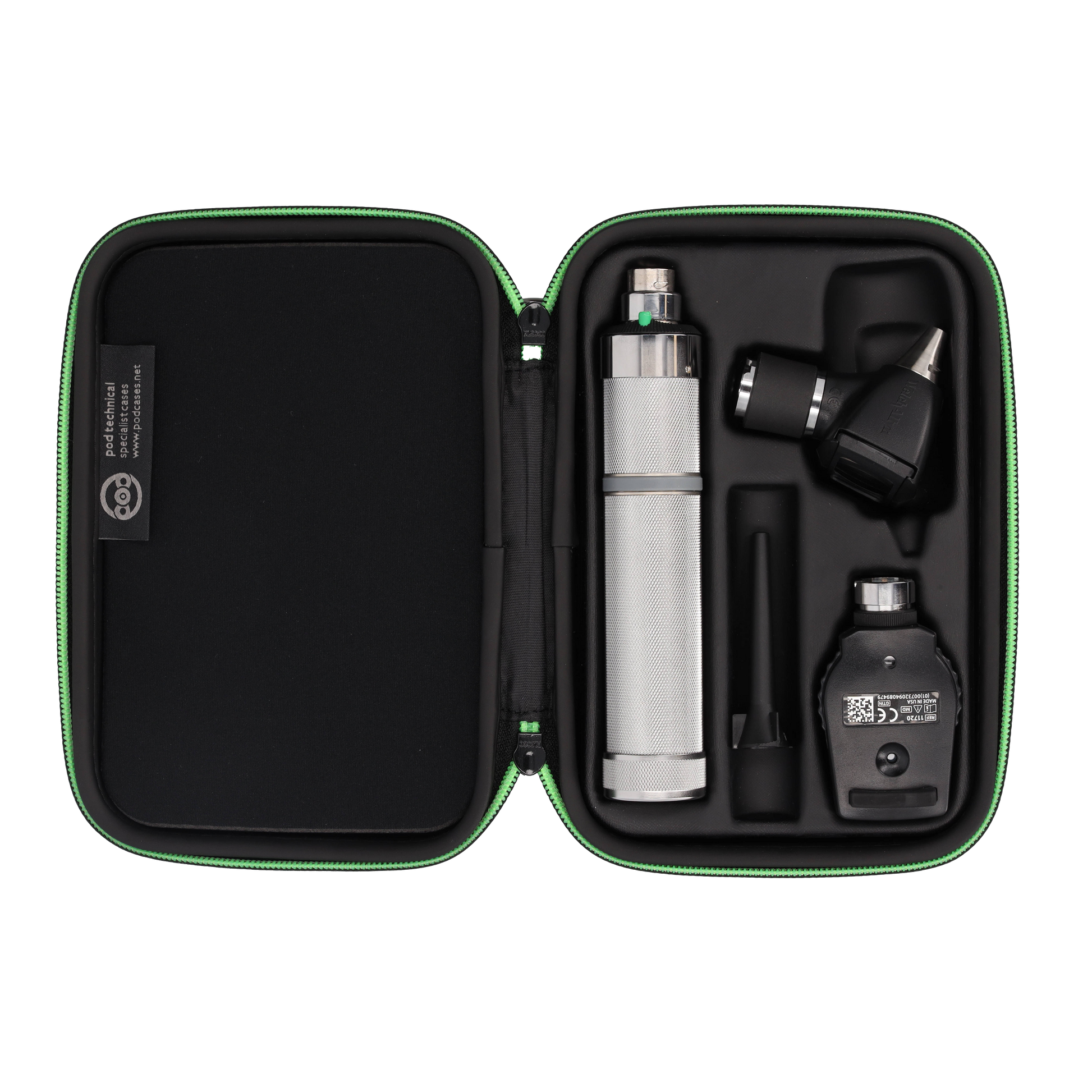

This vet diagnostic set consists of:

• 1x Diagnostic Otoscope
• 1x Coaxial Ophthalmoscope
• 1x C-Cell battery handle
• 1x Pod carry case
• 4x Reusable specula - 4mm, 5mm, 7mm & 7mm instrumental
• USB-C charging cable


Please note: This set only includes one C-Cell battery handle.

Need more specula? Compatible specula sets:

• Welch Allyn Specula Veterinary Otoscopes - Set of 4
• Welch Allyn Specula Veterinary Otoscopes - Set of 5

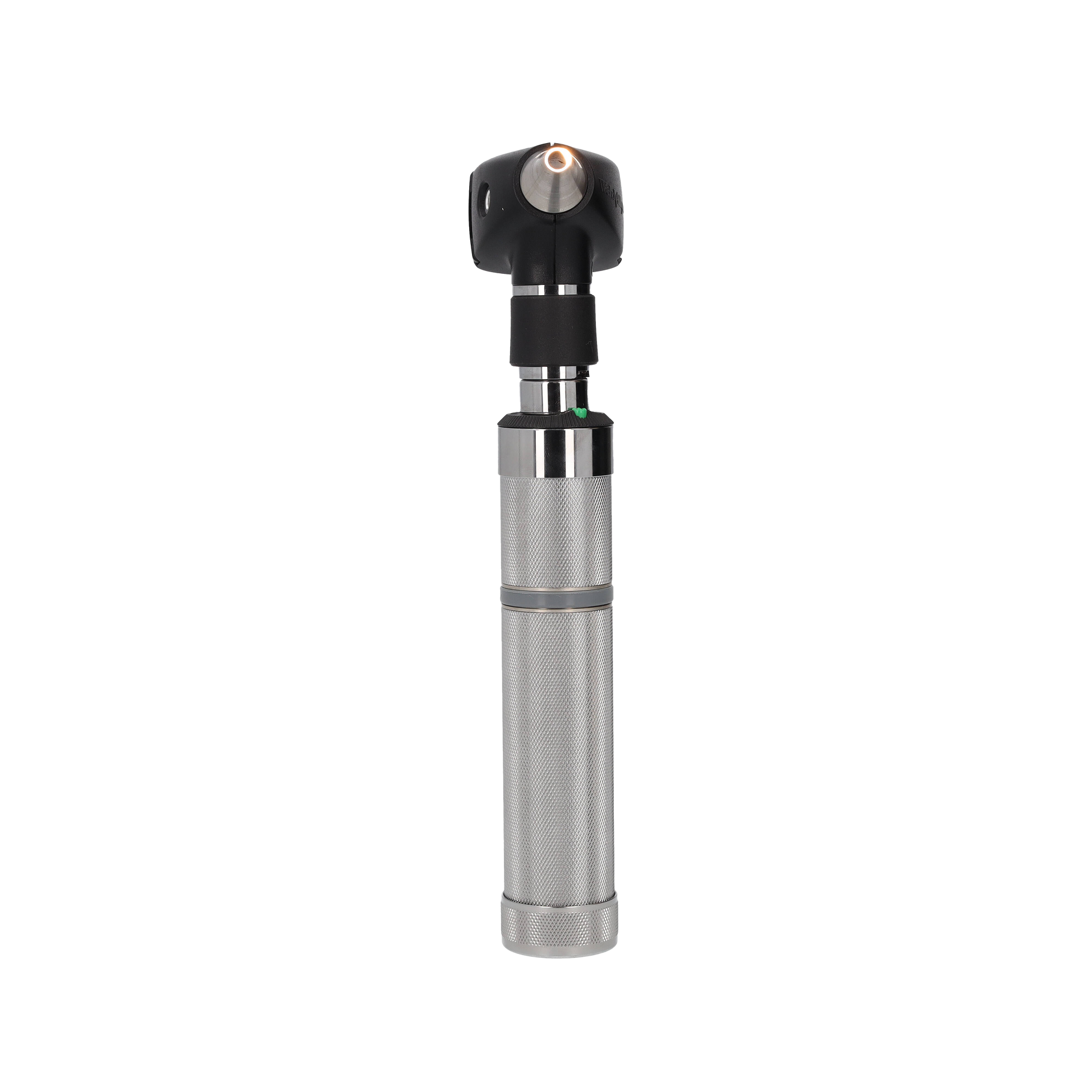

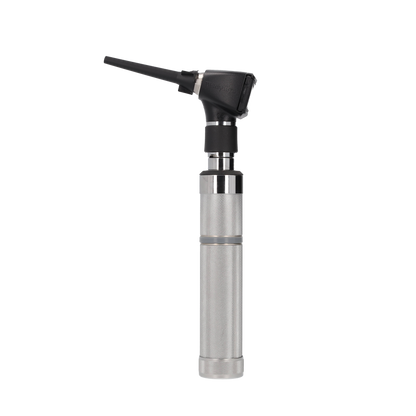

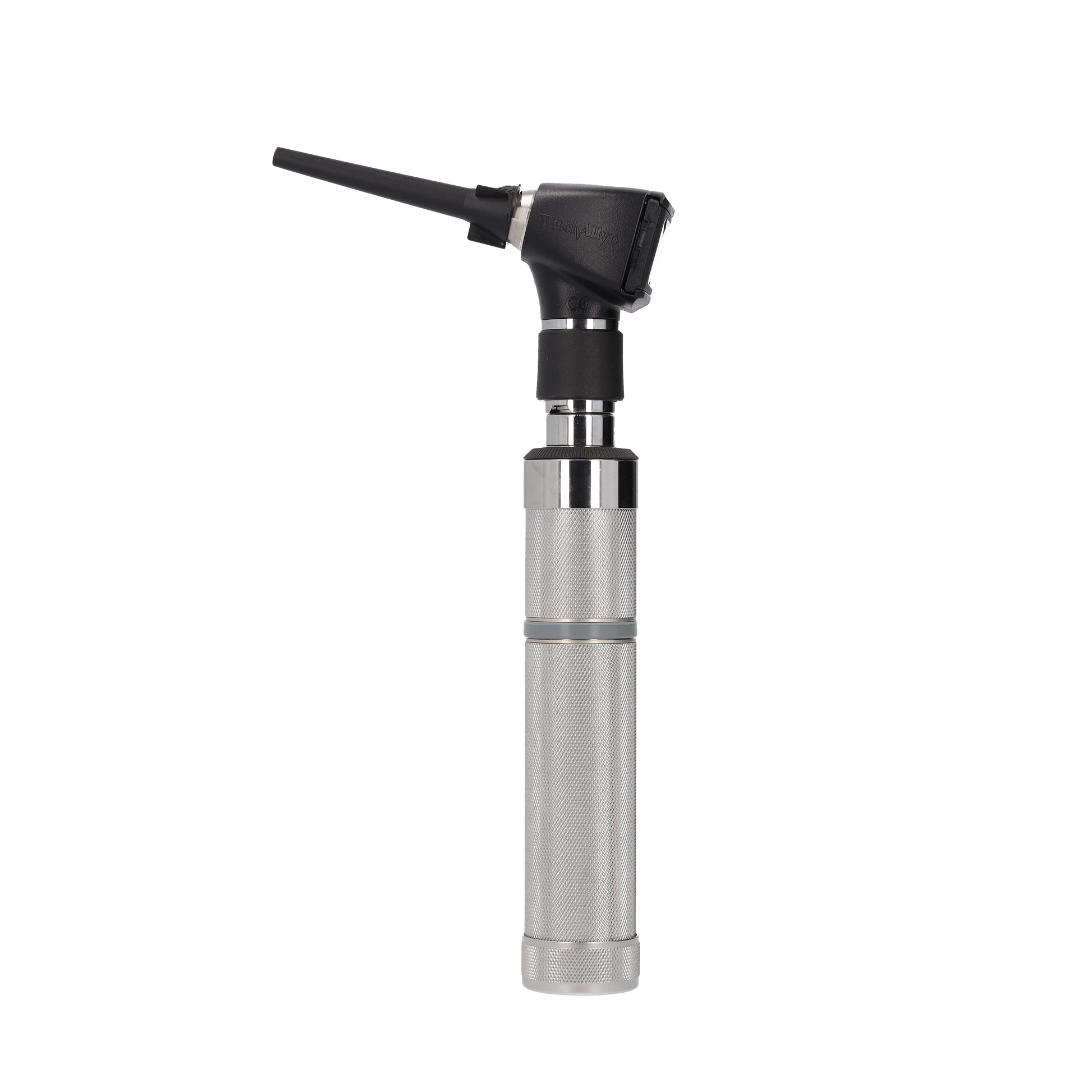

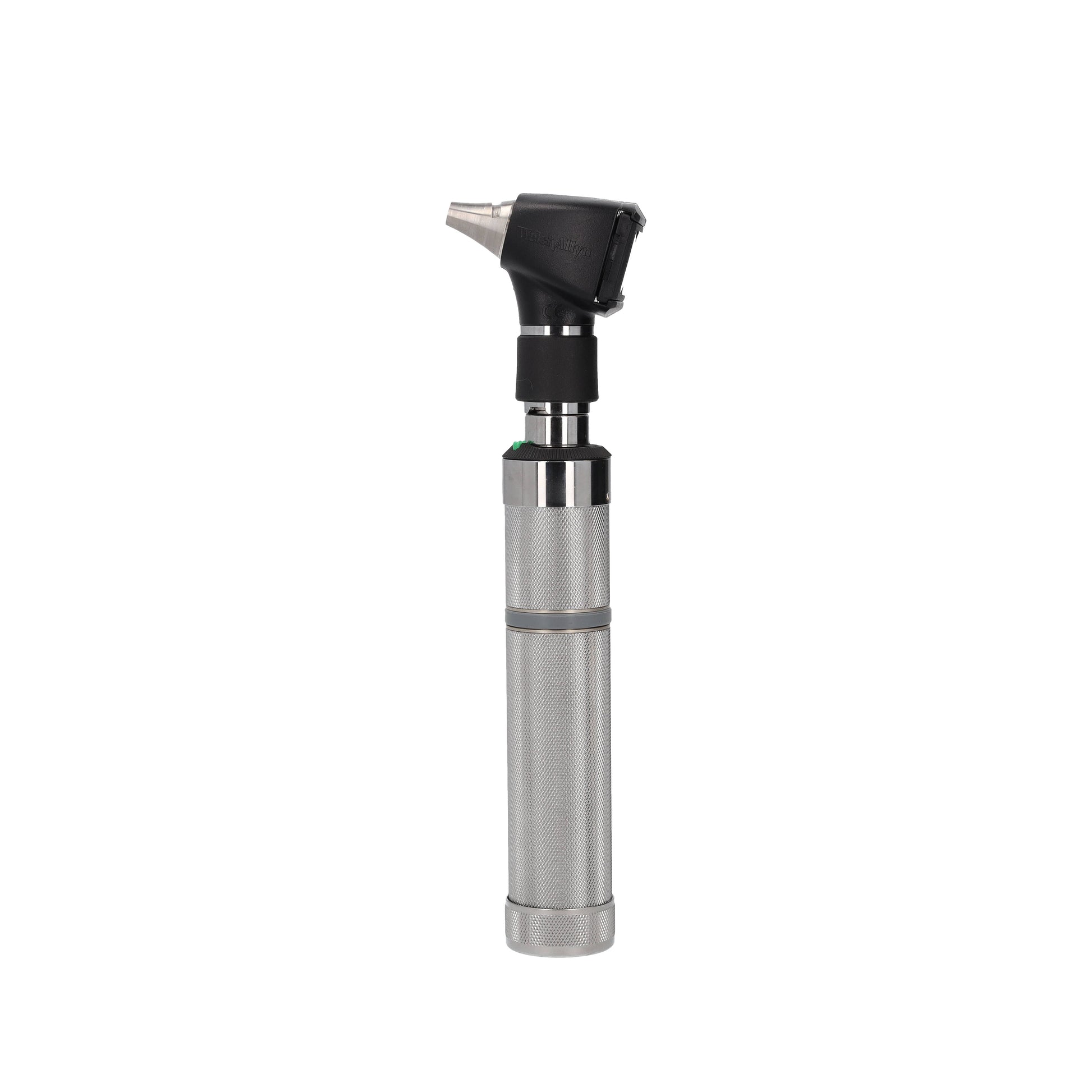

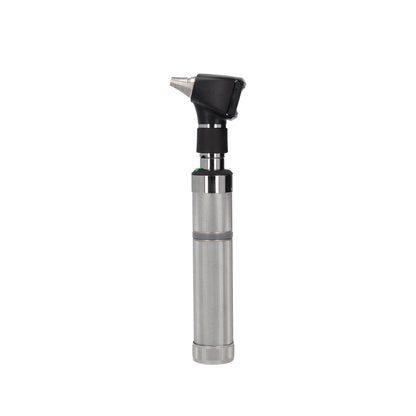

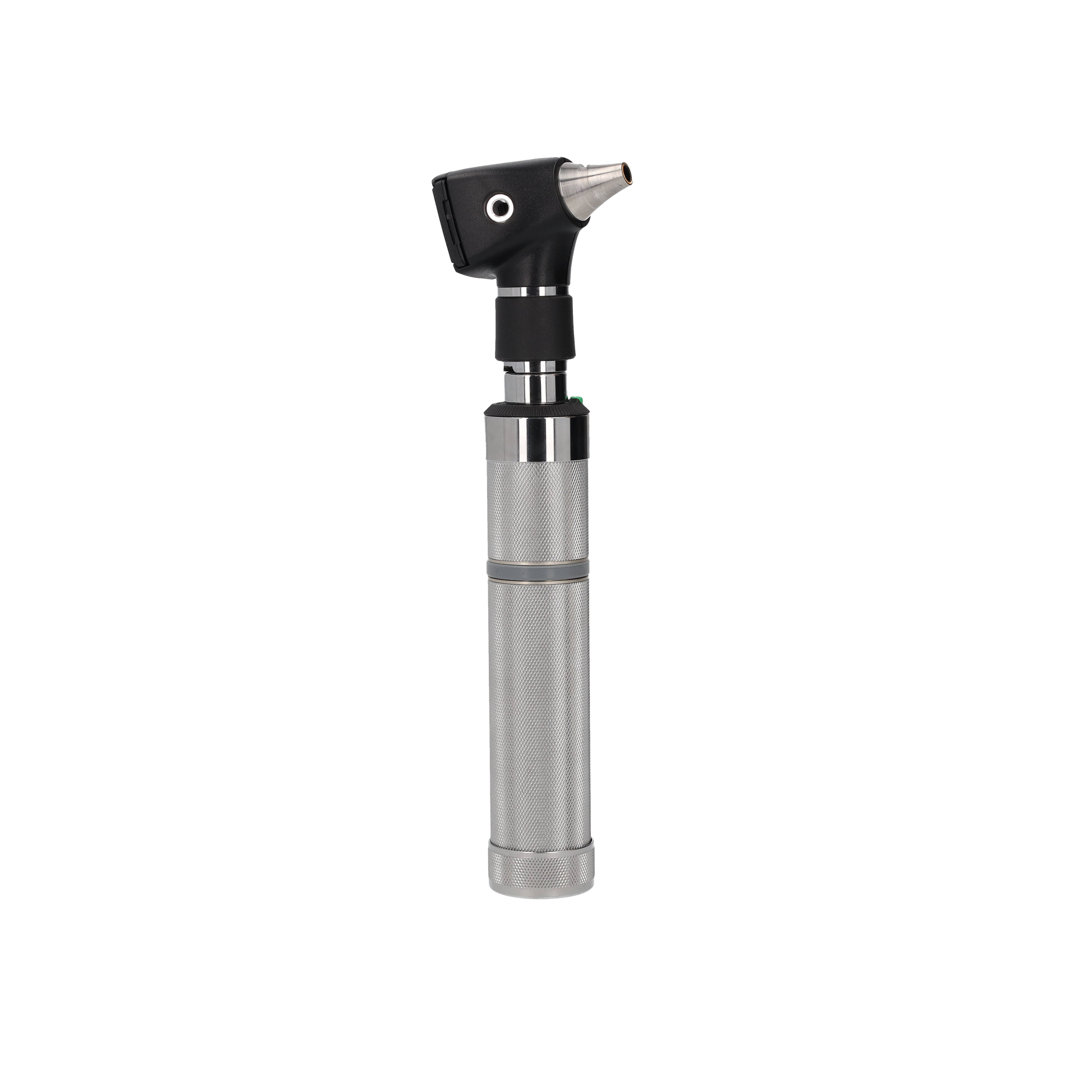

25020 | Diagnostic Otoscope

• The Halogen HPX™ lamp provides light output for true tissue colour and consistent, long-lasting performance.
• Fibre optics project cool light to the distal tip with no reflections or obstructions for superior views of the tympanic membrane.
• The wide-angle viewing lens allows for instrumentation under magnification.
• Variable illumination strength via the handle rheostat dial.

Halogen + Fibre Optics
Allows a completely unobstructed view in true tissue colour.

Rheostat Control
Vary the power of illumination with the smooth turn of a dial.

Wide-angle Viewing Lens
With easy access for cleaning.

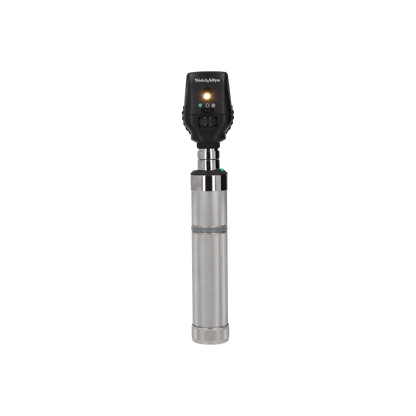

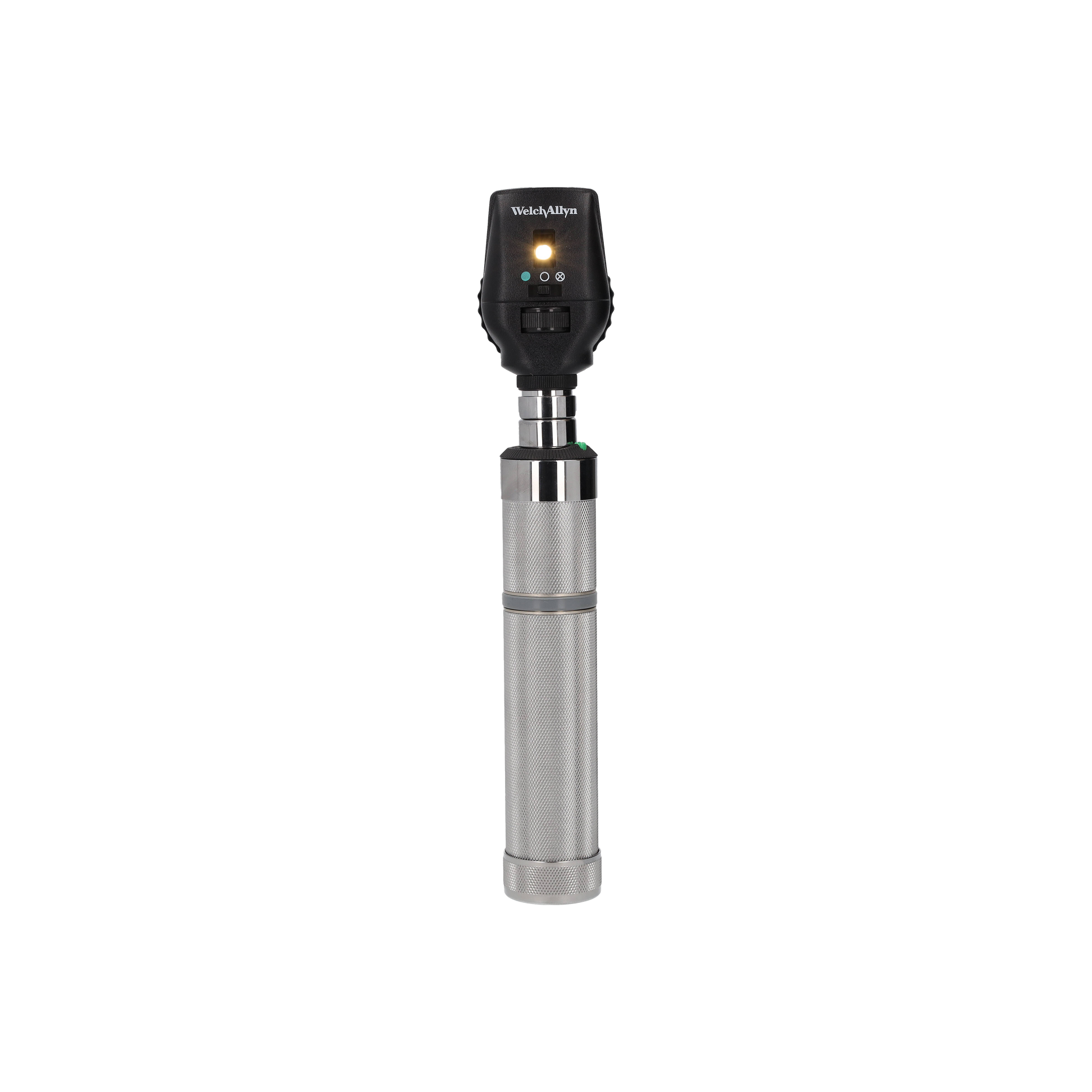

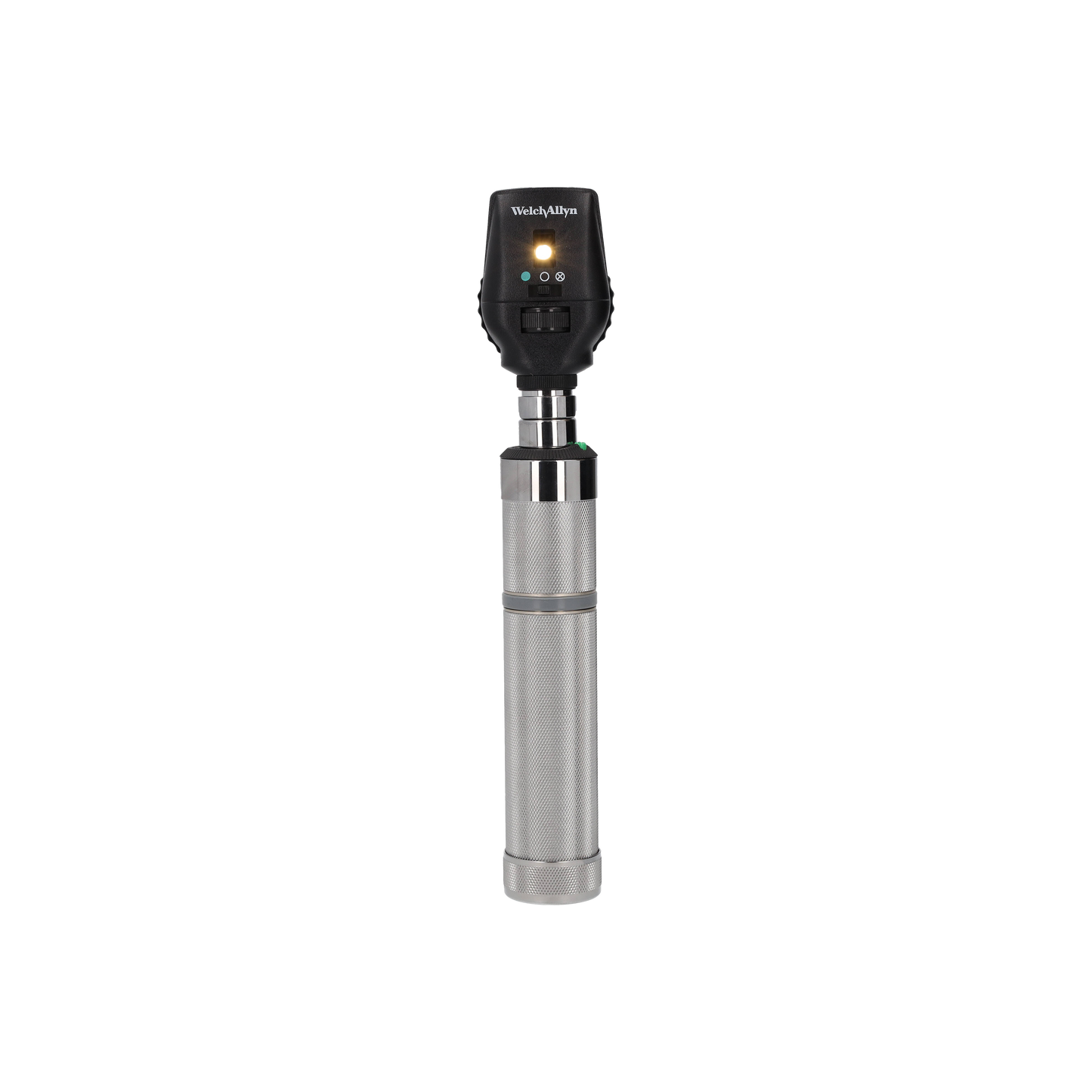

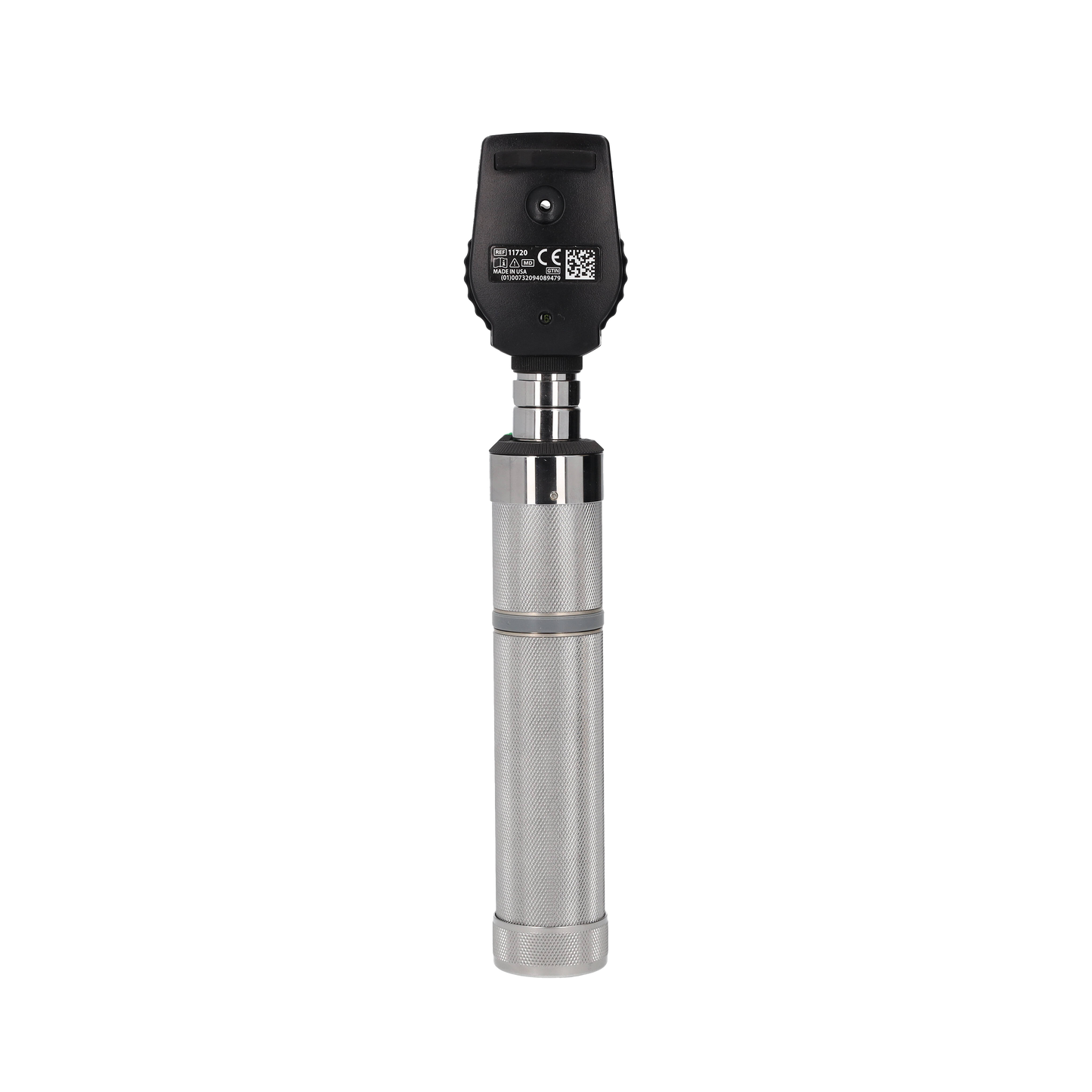

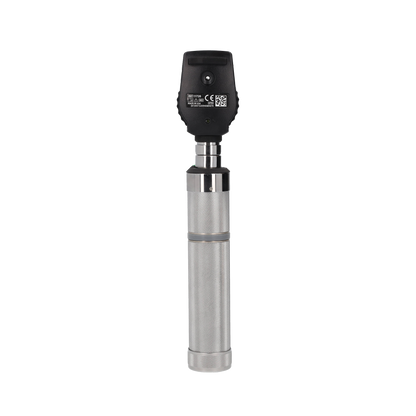

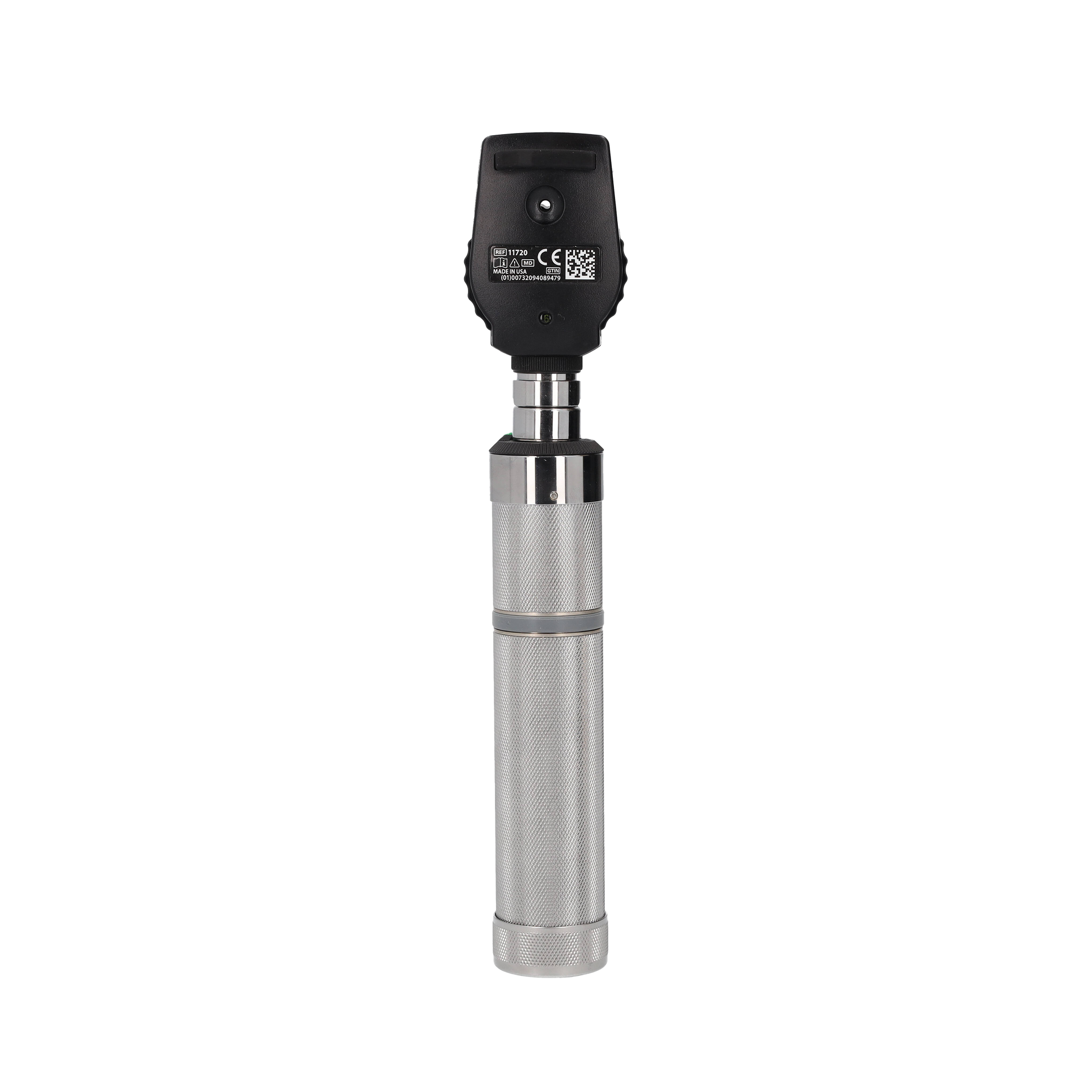

11710 | Standard Ophthalmoscope

• Halogen light for true tissue colour and consistent, long-lasting performance.
• 6 apertures:
  • Micro - allows quick entry into small, undilated pupils.
  • Small - provides excellent view of fundus through an undilated pupil.
  • Large - general examination of the eye through dilated pupil.
  • Fixation - graduated cross-hairs for measuring eccentric fixation or locating lesions.
  • Slit - used to determine levels of lesions and tumors.
  • Red-Free - filters out red light for easy identification of veins, arteries and nerve fibers.
• 28 focusing lenses with a range of -25 to +40 diopters, adjustable via easy-to-reach maywheel.
• Rubber brow-rest prevents scratching of eyeglasses.
• Variable illumination strength via the handle rheostat dial.

Rheostat Control
Vary the power of illumination with the smooth turn of a dial.

Aperture Selection Disc
Switch easily between 6 apertures via a disc on the head.

Six Apertures
A wide range of practical apertures to select from.

LENS Selection Disc
Focus on the fundus, cornea, iris and other ocular structures.
